Catalog Number: BTIP0001

Catalog Number: BTIP0001

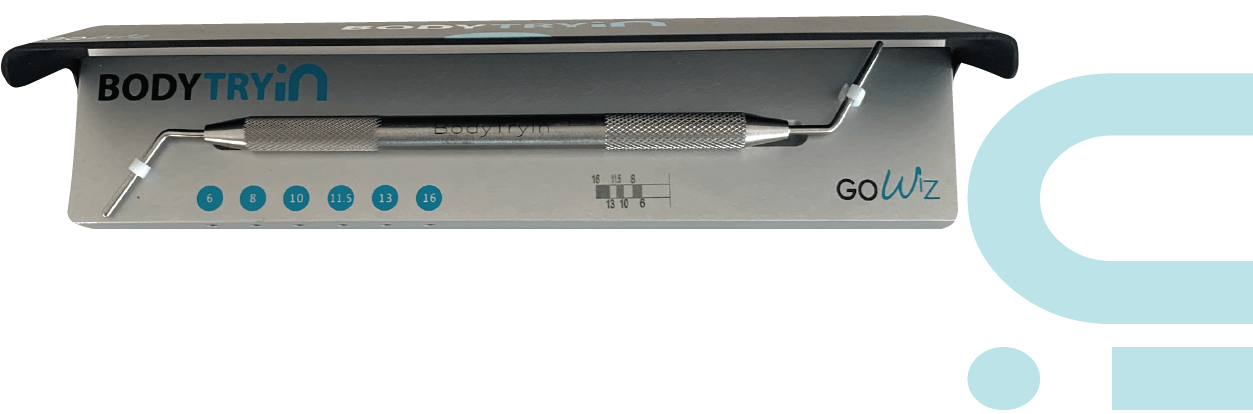

The Body Try In Premium (BTI-P) is a tool designed to assist the clinician to determine the optimal depth of the osteotomy.

Instructions For Use:

  • Choose the correct diameter (4mm/5mm).
  • Place the plastic ring on the gauge at about 4mm from the tip.
  • Insert the gauge into the drilled bone to the maximum.
Data Sheet >
Clean Instrument >

Instructions For Use:

  • Choose the correct diameter (4mm/5mm).
  • Place the plastic ring on the gauge at about 4mm from the tip.
  • Insert the gauge into the drilled bone to the maximum.

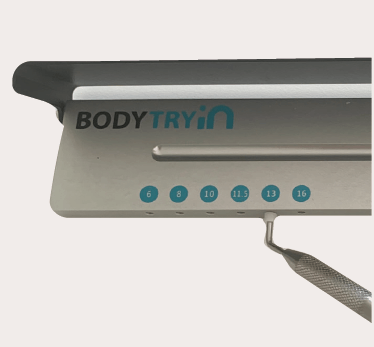

  • The drilling depth is determined by placing the gauge on the kit scale.
  • The plastic ring, will indicate the depth of drilling.

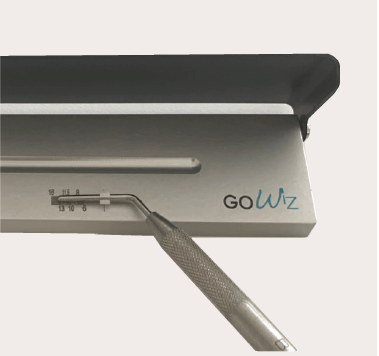

  • Another method for determining the drilling depth: insert the gauge into the “6” hole on the kit, then to “8” and so forth, until the tip is fully inserted up to the plastic ring.
  • Choose the right implant length, according to the depth measured.
Data Sheet >
Clean Instrument >

Cleaning:

  • Remove the plastic ring and place both items, along with the kit, in the ultrasonic (maximum 50ºC/122ºF) with sanitizing liquid.
  • Dry thoroughly after ultrasonic.
